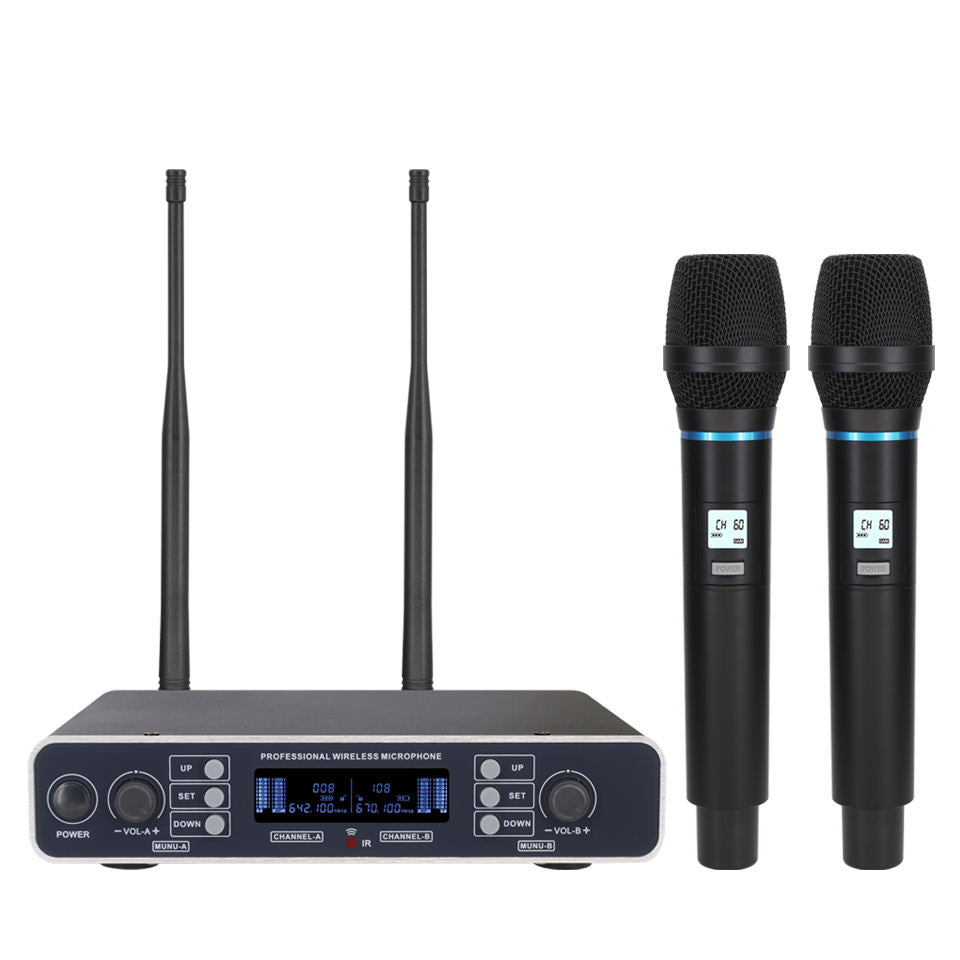

ERZHEN UHF High-end Dual Channel Wireless Microphone System #R280

Product Parameters

• Comprehensive performance
  Carrier frequency: 610-690MHz, CPU microcomputer control
  PLL phase-locked loop frequency synthesis technology: 4x100ch FM frequency stability: < 10 PPM
  Dynamic range:>105 dbT. H. D distortion:<0.5%
  Frequency response: 40 Hz -18 kHz - Audio output: Balanced output: 0-600mv
  Unbalanced output: 0-300mv
  Tone frequency: 32 k-51.2 KHz

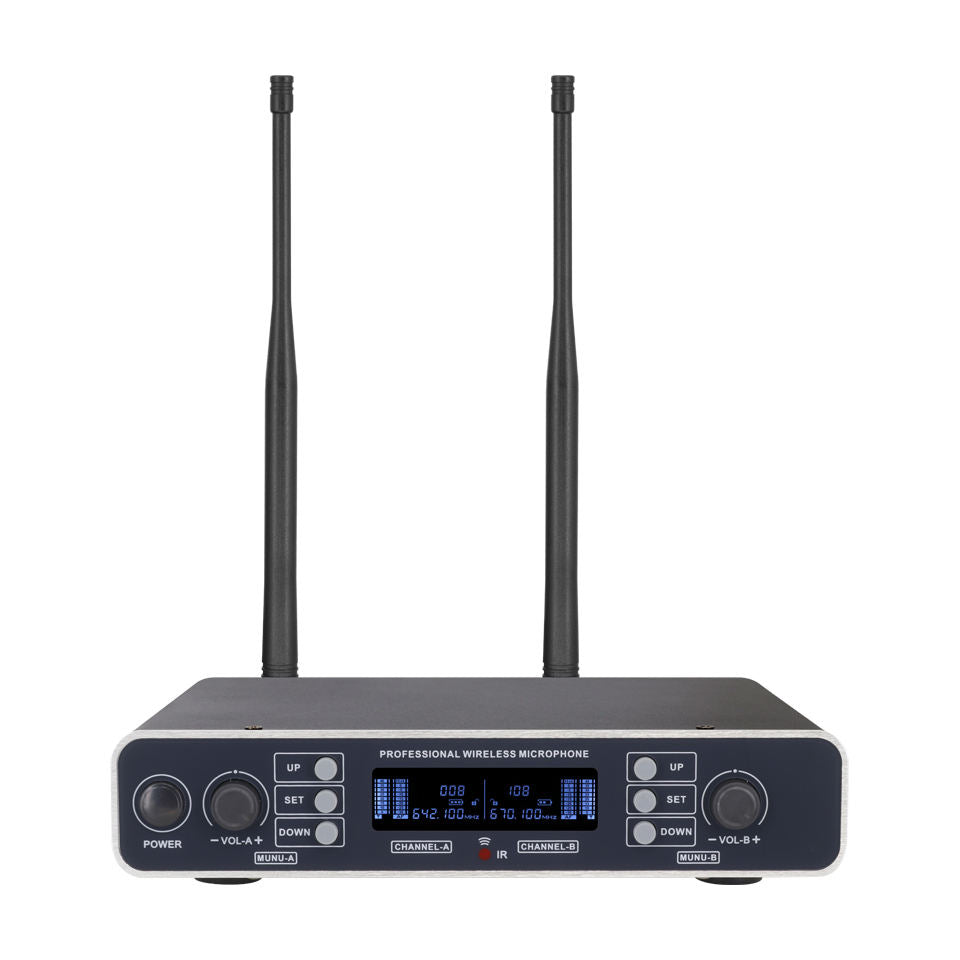

• Receiver
  Carrier frequency: 610-690 MHz (adjustable)
  Power adapter voltage: AC110V-50 Hz, 230 V/60 Hz (please use according to the housing and power adapter) DC input voltage: Dc-12 v1200ma
  Power consumption: 8w
  S/N signal-to-noise ratio:>105 dBT. H. D distortion:<0.5%
  Frequency response: 40 Hz-18 KHz

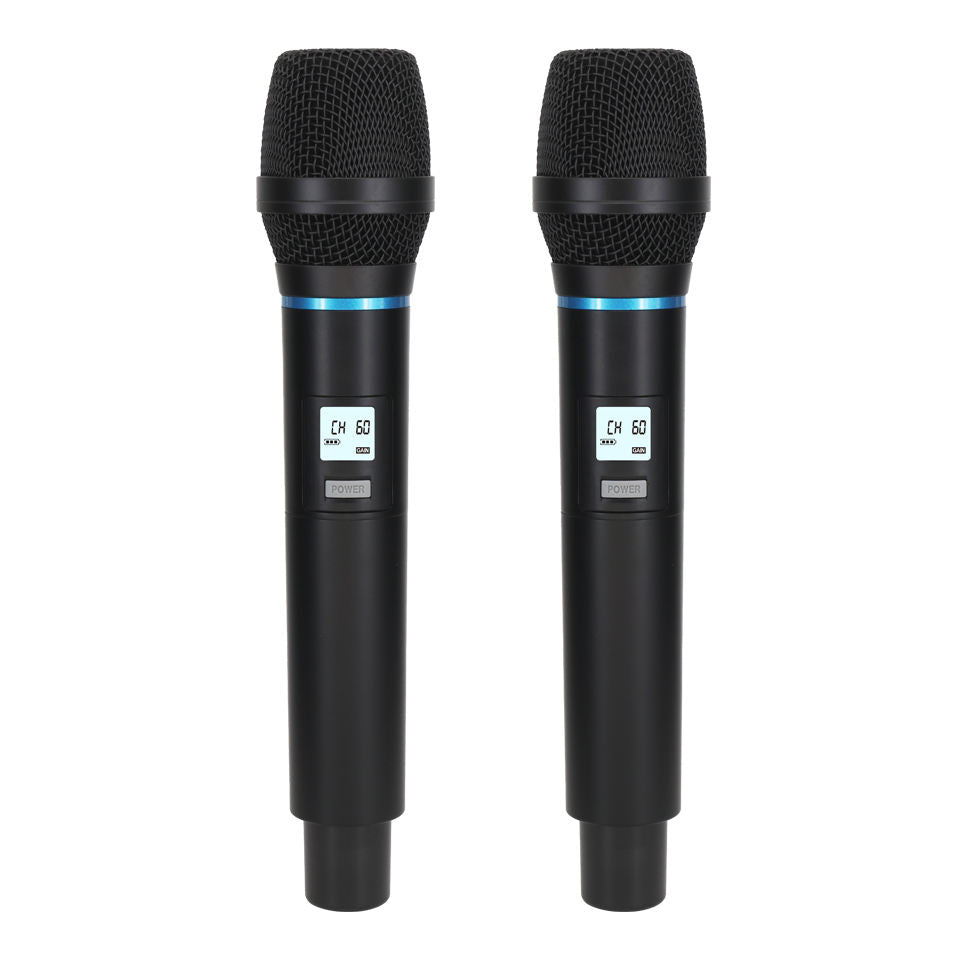

• Transmitter
  Carrier frequency: 610-690 MHz (adjustable)
  Transmission power: High power offset of 10 dBm, low power of 5 dBm Modulation mode: FM
  Main system: ± 45KHZ Transmission power: 10mw
  Battery voltage: 3V (2 AA1.5V alkaline batteries or high capacity A1.2V-1800mAh rechargeable batteries)
  Continuous use time: 8 hours
